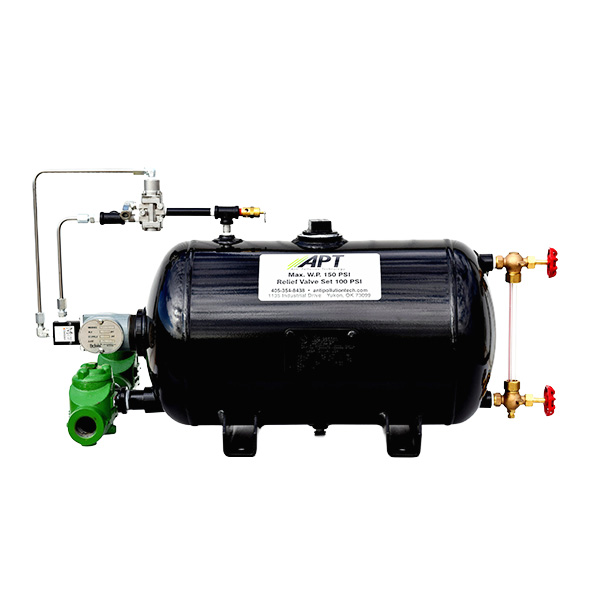

The 10 Gallon Automatic Waste Fluid Recovery Unit is designed to capture, contain, and automatically discharge waste fluids from production equipment. Utilizing a gravity-fed operating system, fluids enter the vessel through an inlet check valve and collect in the tank until the fluid level reaches the activation point.
When the tank nears full capacity, a pneumatic controller actuates a stainless steel 3-way valve, allowing supply air to pressurize the vessel and discharge the collected fluid. Once the tank is emptied, the unit automatically resets and returns to normal operation, providing efficient, hands-free fluid management for oilfield and industrial applications.
Built with an ASME-coded pressure vessel, this compact recovery unit delivers dependable performance, high-temperature capability, and automated waste fluid handling while minimizing operator intervention.
Ideal for:
This unit can be custom built to customer specifications, including vessel modifications, inlet and outlet configurations, control systems, connection sizes, and additional equipment to suit specific operating requirements.
