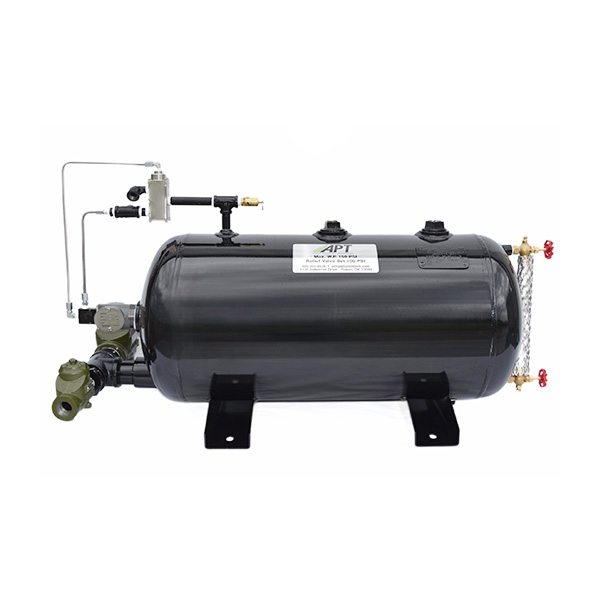

The 30 Gallon Automatic Waste Fluid Recovery Unit is designed to capture, contain, and automatically discharge waste fluids from production equipment. Operating as a gravity-fed collection system, fluids enter the vessel through an inlet check valve and accumulate in the tank. When the tank reaches near-full capacity, a pneumatic level controller activates a stainless steel 3-way valve, allowing supply air to pressurize the vessel and discharge the collected fluids.
Once the vessel is emptied, the system automatically resets and resumes operation, providing a reliable, hands-free solution for waste fluid management in oilfield and industrial applications. Built with an ASME-coded pressure vessel, this unit delivers safe, efficient, and dependable performance in demanding operating environments.
Ideal for:
Each unit can be custom built to customer specifications, including modified vessel sizes, connection configurations, valve arrangements, control systems, and additional equipment to meet operational requirements.
