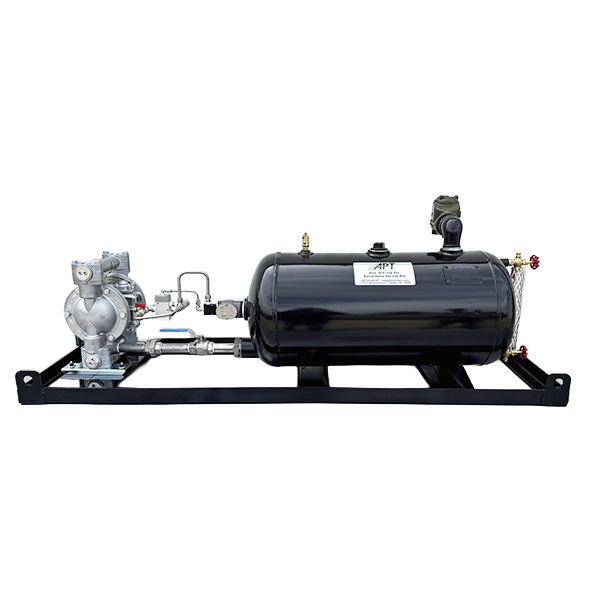

30 Gallon Skid-Mounted Chemical Pump Package
The 30 Gallon Skid-Mounted Chemical Pump Package is a durable, field-ready solution designed for reliable fluid transfer and chemical injection applications in oilfield and industrial environments. Built around a 30-gallon ASME Code pressure vessel and a 1″ Yamada diaphragm pump, this package combines rugged construction, corrosion-resistant components, and industry-standard controls for dependable performance in demanding operating conditions.
The compact skid design features integrated lifting points for easy transport and installation, while the vessel includes level monitoring, pressure protection, and expansion capabilities for additional equipment. Custom configurations are available to meet specific customer requirements.
Key Benefits
- Complete skid-mounted fluid transfer solution
- 30-gallon ASME Code pressure vessel
- Reliable 1″ Yamada aluminum diaphragm pump
- Heavy-duty powder-coated steel skid construction
- Industry-standard BelGas level controller
- Stainless steel fittings and tubing for durability
- Integrated lifting points for safe transport and handling
- Expandable design with additional vessel ports
- Custom-engineered options available
Skid Specifications
- 3/16″ Steel Construction
- Powder Coated In-House Gloss Black Finish
- 3/16″ Pump Mounting Plate
- Four Integrated Lifting Plates for Hooks and Chains
- Dimensions: 67″ L x 19.5″ W
Tank Specifications
- 30 Gallon ASME Code Vessel
- Powder Coated In-House Gloss Black Finish
- Gauge Cocks
- Sight Glass with Protective Guard
- 1/2″ Relief Valve Set at 100 PSI
- Additional Available Ports:
- One 2″ Port
- One 1-1/2″ Port
- Optional Swing Checks and Additional Equipment Available
- BelGas P8700 2″ Level Controller
Pump Specifications
Yamada Diaphragm Pump
- Model: NDP-25BAN
- 1″ Aluminum Pump
- Buna Seals
- Air-Operated Diaphragm Design
Fittings & Controls
- 304 Stainless Steel Pipe Fittings
- 304 Stainless Steel Ball Valve
- Stainless Steel Tubing Runs for Increased Rigidity
- 3/8″ Three-Way Valve
- 3/8″ Bypass for Manual Dump
Applications
Ideal for:
- Chemical injection systems
- Fluid transfer applications
- Oil and gas production facilities
- Tank filling and transfer operations
- Industrial process applications
- Production and storage sites
Custom Design Options
This package can be custom designed to customer specifications, including additional valves, inlet swing checks, instrumentation, controls, and vessel modifications to meet unique operational requirements.
