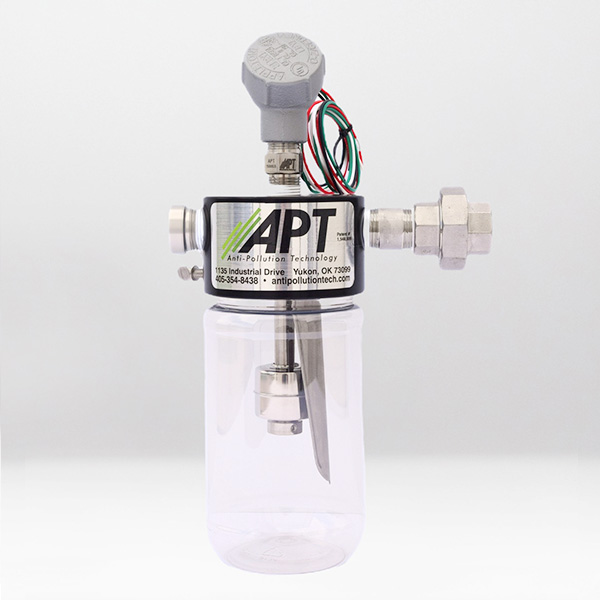

The Float-Style Leak Detector is engineered to capture and manage fluid leaking past stuffing box packing, helping operators reduce environmental risk, protect equipment, and maintain safer production operations. Equipped with an explosion-proof float switch, the unit automatically shuts down the pumping system when the stainless steel reservoir reaches approximately 75% capacity, helping prevent overflows and uncontrolled spills.

Built for demanding oilfield environments, the Float-Style Leak Detector features a durable stainless steel reservoir and fittings, making it a reliable solution for leak containment and pumping system protection.

Key Benefits

• Captures and contains fluid leaking past stuffing box packing
• Automatically shuts down pumping systems at approximately 75% reservoir capacity
• Suitable for electric and gas applications
• Explosion-proof design for hazardous locations
• Durable stainless steel construction
• Helps reduce environmental impact and cleanup costs
• Improves operational safety and equipment protection
• Designed for long-term reliability in harsh oilfield conditions

Specifications

Float Switch

• Opened & Closed Contacts; SPDT
• Electric or Gas Applications
• 120 VDC, 60Hz, 3A Maximum
• Class I, Division I, Groups A, B, C, D
• Class II, Division I, Groups E, F, G
• Temperature Rating: -40°C to +120°C

Construction Features

• Plastic reservoir
  Easy of visual inspection
  Economical
• Deflector Shield
• Stainless steel fittings
• Explosion-proof entrance elbow
• Set screw to secure reservoir

Applications

Ideal for:

• Oil and gas production operations
• Stuffing box leak containment
• Pumping unit protection
• Wellhead equipment
• Hazardous location installations
• Environmental spill prevention programs
