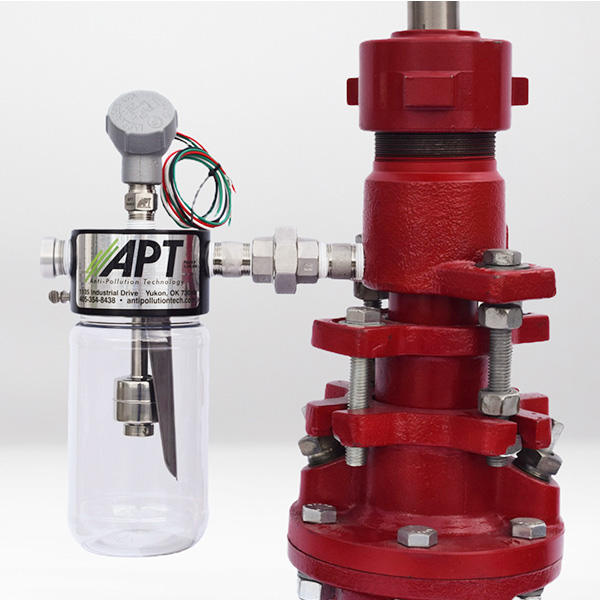

Float-Style Leak Detector with HD Plug

The Float-Style Leak Detector with HD Plug is engineered to capture and manage fluid leaking past stuffing box packing, helping operators maintain safer, cleaner, and more efficient production operations. Equipped with an explosion-proof float switch, the system automatically shuts down the pumping unit when the stainless steel reservoir reaches approximately 75% capacity, helping prevent spills, equipment damage, and environmental contamination.

Paired with a durable HD Plug, this leak detection system provides reliable sealing performance and enhanced stuffing box protection in demanding oilfield applications. Designed for durability and ease of maintenance, it offers dependable leak containment and pumping system protection.

Key Benefits

• Captures and contains fluid leaking past stuffing box packing
• Automatic pump shutdown at approximately 75% reservoir capacity
• Suitable for electric and gas applications
• Explosion-proof design for hazardous locations
• Durable stainless steel reservoir and fittings
• HD Plug provides enhanced sealing and packing support
• Helps reduce environmental risk and cleanup costs
• Designed for long-lasting oilfield performance

Leak Detector Specifications

Float Switch

• Opened & Closed Contacts; SPDT
• Electric or Gas Applications
• 120 VDC, 60Hz, 3A Maximum
• Class I, Division I, Groups A, B, C, D
• Class II, Division I, Groups E, F, G
• Temperature Rating: -40°C to +120°C

Construction Features

• Plastic reservoir
  Easy of visual inspection
  Economical
• Stainless steel fittings
• Explosion-proof entrance elbow
• Set screw to secure reservoir

HD Plug Features

• Secondary Packing
• V-Style Packing
• Rated to 1500 PSI
• Replaces the Top Cap and Upper Gland of the Stuffing Box
• Integrated Grease Zerk for Packing Lubrication
• Single ACME Thread Cap Design
