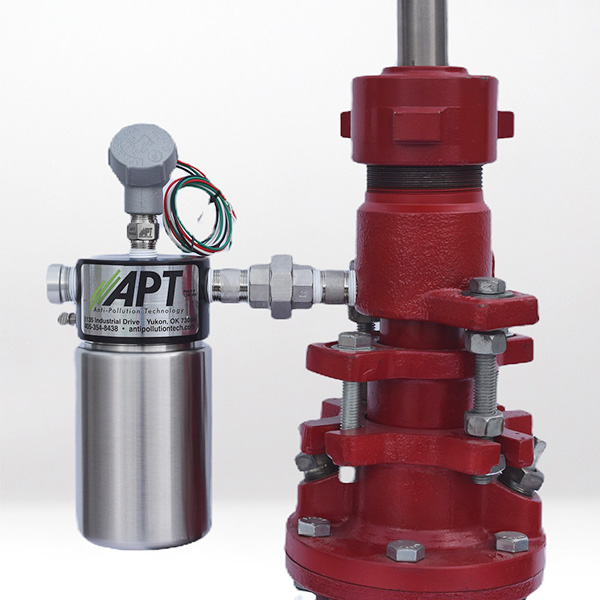

The Float-Style Leak Detector with HD Plug is engineered to capture and manage fluid leaking past stuffing box packing, helping operators maintain safer, cleaner, and more efficient production operations. Equipped with an explosion-proof float switch, the system automatically shuts down the pumping unit when the stainless steel reservoir reaches approximately 75% capacity, helping prevent spills, equipment damage, and environmental contamination.
Paired with a durable HD Plug, this leak detection system provides reliable sealing performance and enhanced stuffing box protection in demanding oilfield applications. Designed for durability and ease of maintenance, it offers dependable leak containment and pumping system protection.
| ELECTRICAL SPECIFICATIONS |
|---|
|
SWITCH CONFIGURATION |
| SWITCH RATING 120 VDC, 60Hz, 3A (max.) |
| CERTIFICATION Class I, Division I, Groups A,B,C,D Class II, Division I, Groups E,F,G |
| TEMPERATURE -25 to +109 Celsius |
| SWITCH MATERIAL Solid Tungsten Bar and Plate |
Ideal for:
