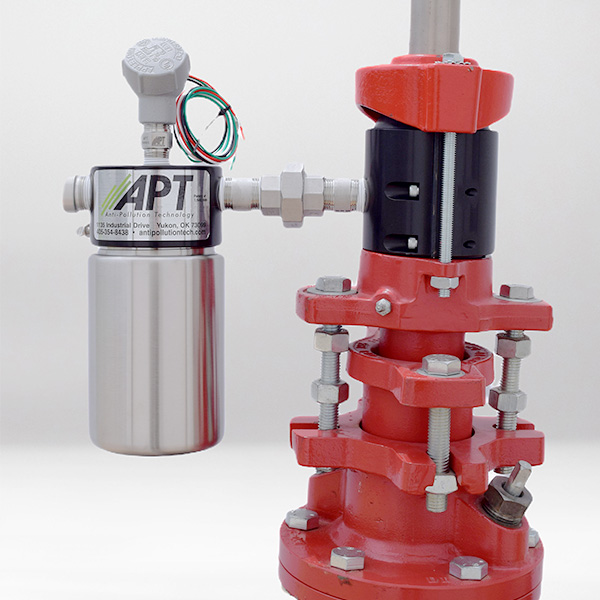

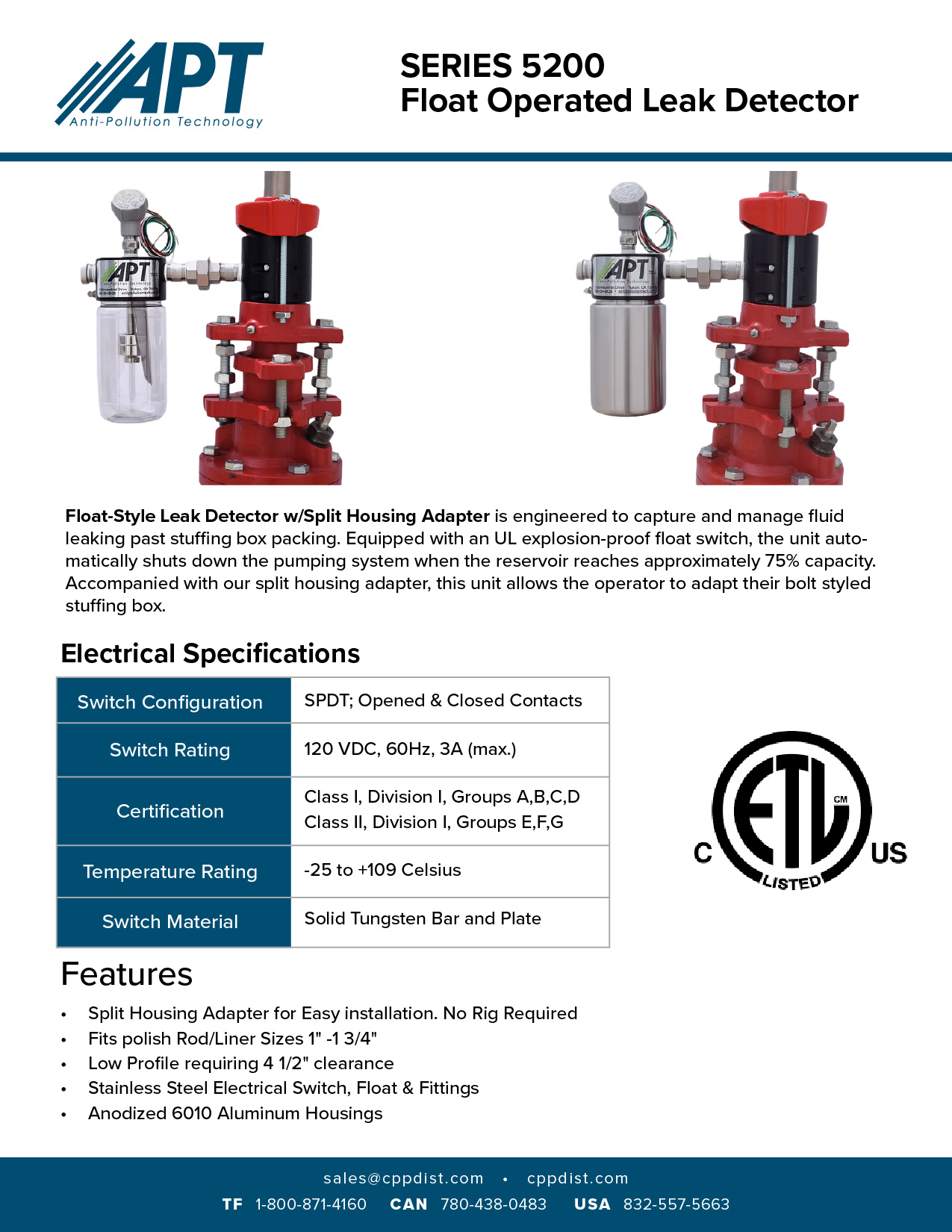

The Float-Style Leak Detector with Split Housing Adapter is designed to capture and manage fluid leakage that escapes past stuffing box packing, helping operators prevent spills, protect equipment, and maintain safe pumping operations. Equipped with an explosion-proof float switch, the unit automatically shuts down the pumping system when the stainless steel reservoir reaches approximately 75% capacity, reducing the risk of overflow and environmental contamination.

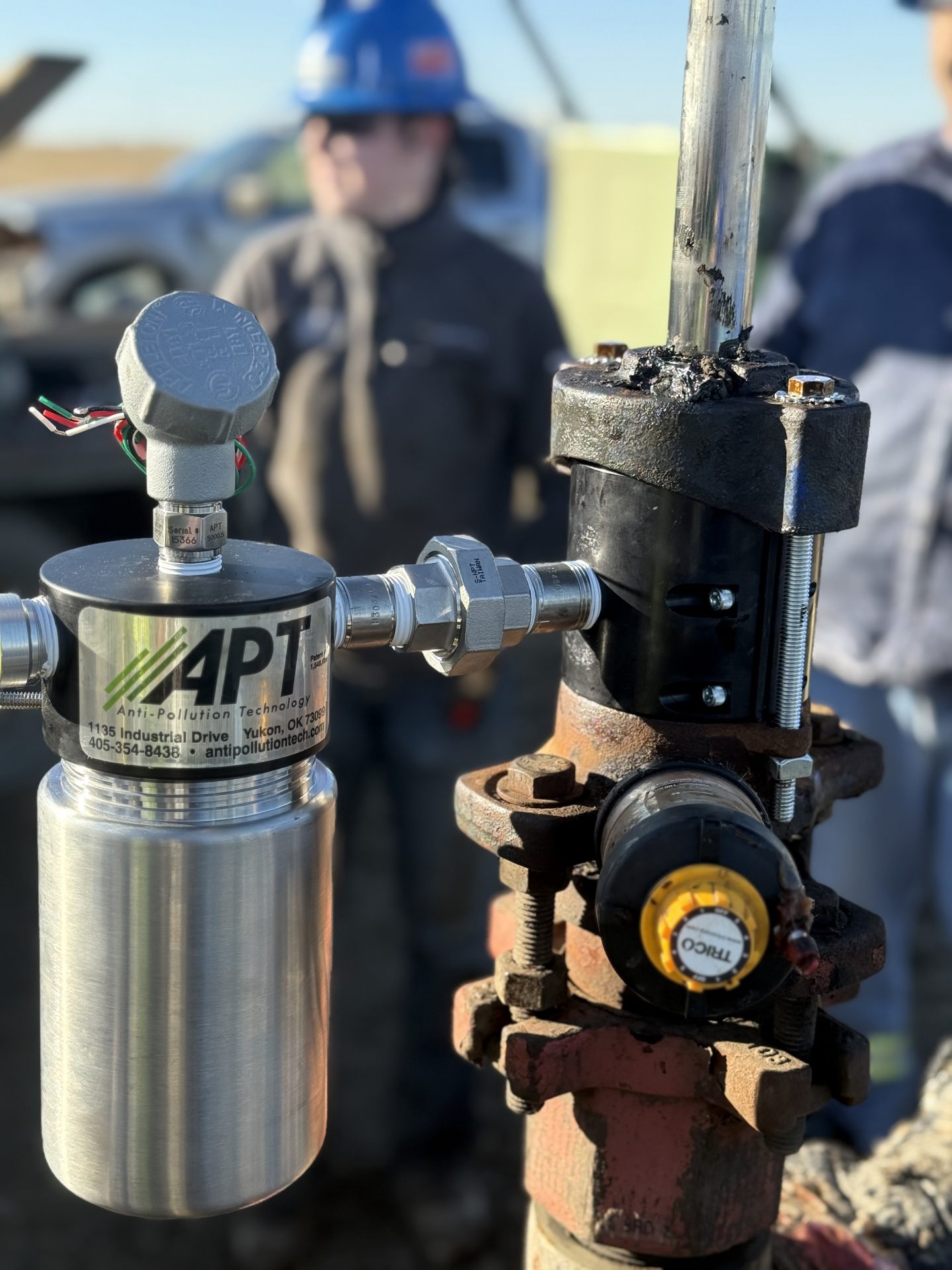

Paired with a Split Housing Adapter, this leak detector allows operators to adapt existing bolt-style stuffing boxes without requiring a rig for installation. Its low-profile design and complete installation kit make it a practical, field-ready solution for oilfield production applications.
Key Benefits
- Captures and contains fluid leaking past stuffing box packing
- Automatic pump shutdown at approximately 75% reservoir capacity
- Explosion-proof float switch for hazardous environments
- Designed for both electric and gas applications
- Split Housing Adapter allows adaptation to bolt-style stuffing boxes
- No rig required for installation
- Low-profile design requiring only 4-1/2″ clearance
- Durable stainless steel construction for long service life
- Complete installation kit includes all required bolts and tools
Leak Detector Features & Specifications
Float Switch
- Opened & Closed Contacts; SPDT
- Electric or Gas Applications
- 120 VDC, 60Hz, 3A (Max)
- Explosion-Proof Design
- Class I, Division I, Groups A, B, C, D
- Class II, Division I, Groups E, F, G
- Temperature Rating: -40°C to +120°C

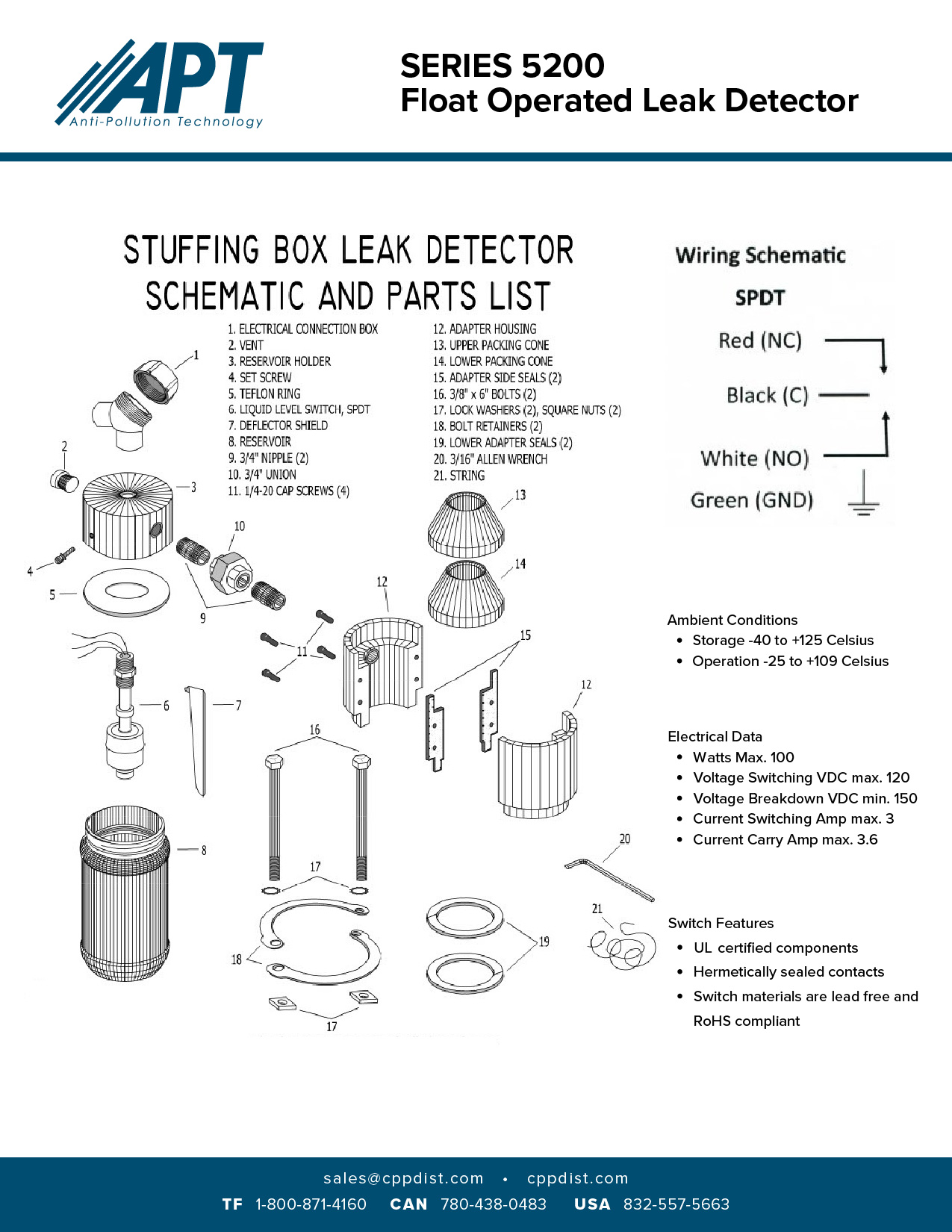

Construction
- Stainless Steel Reservoir
- Stainless Steel Fittings
- Explosion-Proof Entrance Elbow
- Set Screw to Secure Reservoir
- Engineered for Maximum Durability
Split Housing Adapter Features
- No Rig Required for Installation
- Secondary Packing Included
- Standard Cone Packing (1 Upper Cone & 1 Bottom/Heel Cone)
- Fits Polished Rod Sizes: 1″ to 1-3/4″
- Low-Profile Design Requires Only 4-1/2″ Clearance
- Complete Installation Kit Includes All Bolts and Required Tools
| ELECTRICAL SPECIFICATIONS |
|
SWITCH CONFIGURATION
SPDT; Opened & Closed Contacts
|
SWITCH RATING
120 VDC, 60Hz, 3A (max.) |
CERTIFICATION
Class I, Division I, Groups A,B,C,D
Class II, Division I, Groups E,F,G |
TEMPERATURE
-25 to +109 Celsius |
SWITCH MATERIAL
Solid Tungsten Bar and Plate |
Applications
Ideal for:
- Oil and Gas Production Operations
- Pumping Units
- Stuffing Box Leak Containment
- Wellhead Equipment
- Hazardous Location Installations
- Production Facility Environmental Protection Programs
