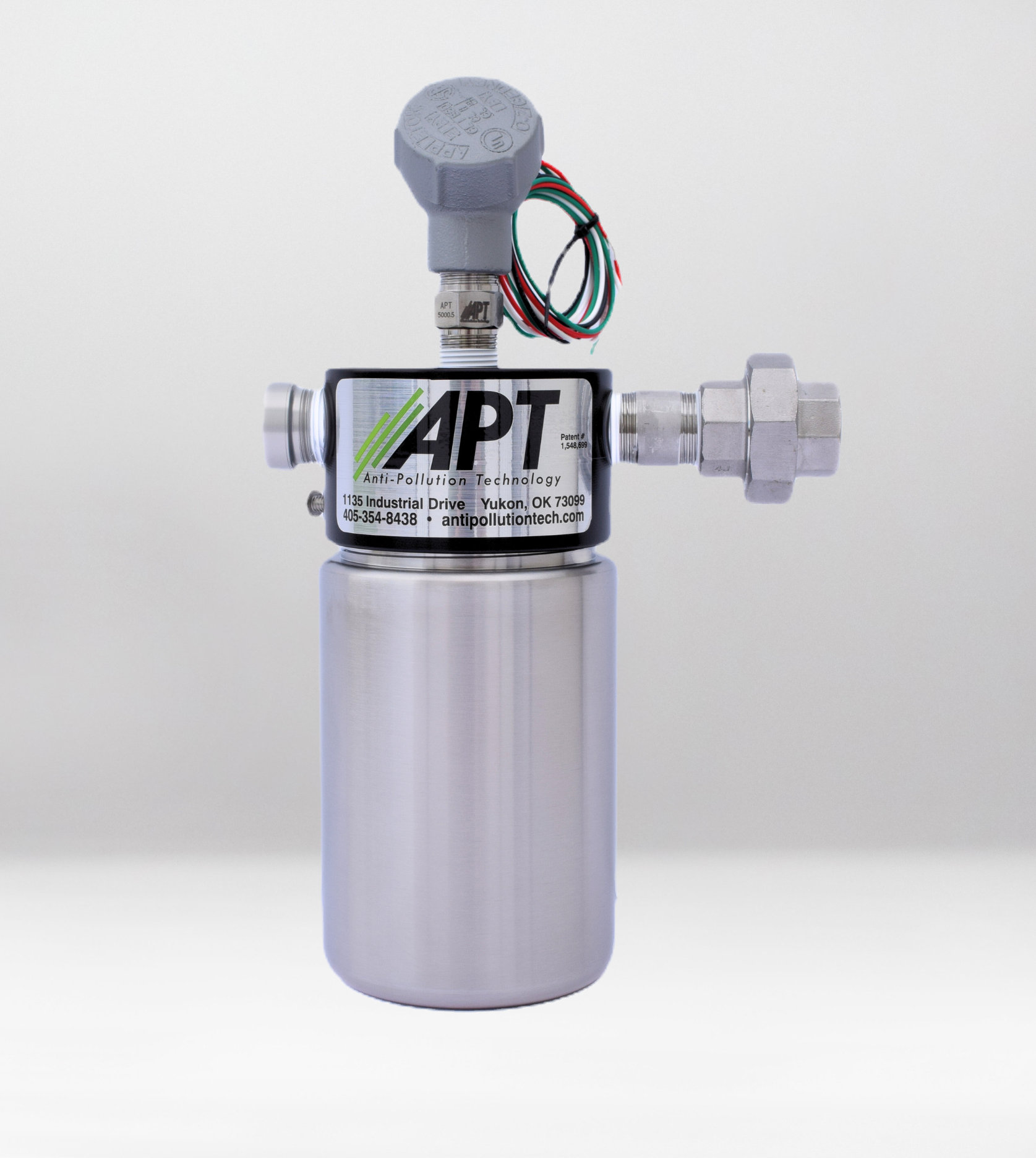

The Float-Style Leak Detector is engineered to capture and manage fluid leaking past stuffing box packing, helping operators reduce environmental risk, protect equipment, and maintain safer production operations. Equipped with an explosion-proof float switch, the unit automatically shuts down the pumping system when the stainless steel reservoir reaches approximately 75% capacity, helping prevent overflows and uncontrolled spills.
Built for demanding oilfield environments, the Float-Style Leak Detector features a durable stainless steel reservoir and fittings, making it a reliable solution for leak containment and pumping system protection.
| ELECTRICAL SPECIFICATIONS |
|---|
|
SWITCH CONFIGURATION |
| SWITCH RATING 120 VDC, 60Hz, 3A (max.) |
| CERTIFICATION Class I, Division I, Groups A,B,C,D Class II, Division I, Groups E,F,G |
| TEMPERATURE -25 to +109 Celsius |
| SWITCH MATERIAL Solid Tungsten Bar and Plate |
Ideal for:
