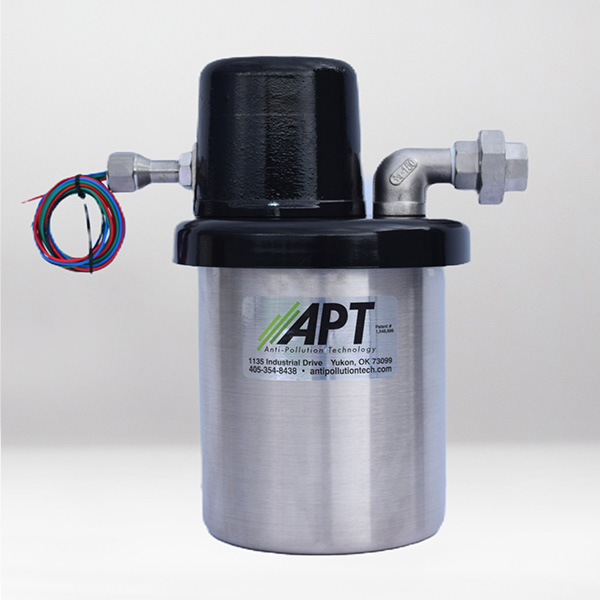

The Weight Operated Leak Detector is engineered to capture and manage fluid leaking past stuffing box packing, helping operators prevent spills and protect pumping equipment. Unlike float-operated systems, this unit activates based on the accumulated weight of fluid collected in the stainless steel reservoir. Once the preset weight threshold is reached, the electrical switch automatically shuts down the pumping unit to prevent overflow and environmental contamination.
Available in explosion-proof or non-explosion-proof configurations, the detector features an adjustable spring mechanism that allows operators to customize the activation point to meet specific operating requirements. Built with durable stainless steel components and designed for demanding oilfield environments, this leak detector delivers reliable leak containment and equipment protection.
| ELECTRICAL SPECIFICATIONS |
|---|
|
SWITCH CONFIGURATION |
| SWITCH RATING 120 VDC, 60Hz, 3A (max.) |
| CERTIFICATION Class I, Division I, Groups A,B,C,D Class II, Division I, Groups E,F,G |
| TEMPERATURE -25 to +109 Celsius |
| SWITCH MATERIAL Solid Tungsten Bar and Plate |
Ideal for:
